2022 - 2026 Mercedes-Benz GLC SUV Fuse Relay Boxes Location
2022 - 2026 Mercedes-Benz GLC SUV, has 4 fuse and relay boxes, 1 fuse relay box in the engine compartment, 2 fuse relay box in the passenger compartment and 1 fuse relay box in the luggage compartment.
Engine Compartment Fuse Relay Box Location:

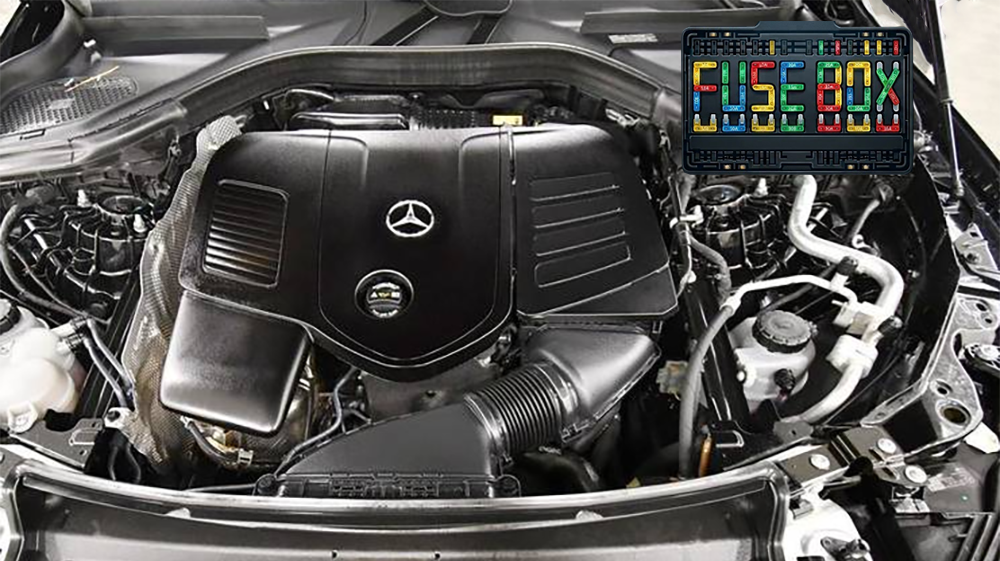

The location of the fuse relay box in the engine compartment is on the driver's side of the engine.
Passenger Compartment Fuse Relay Box Location:

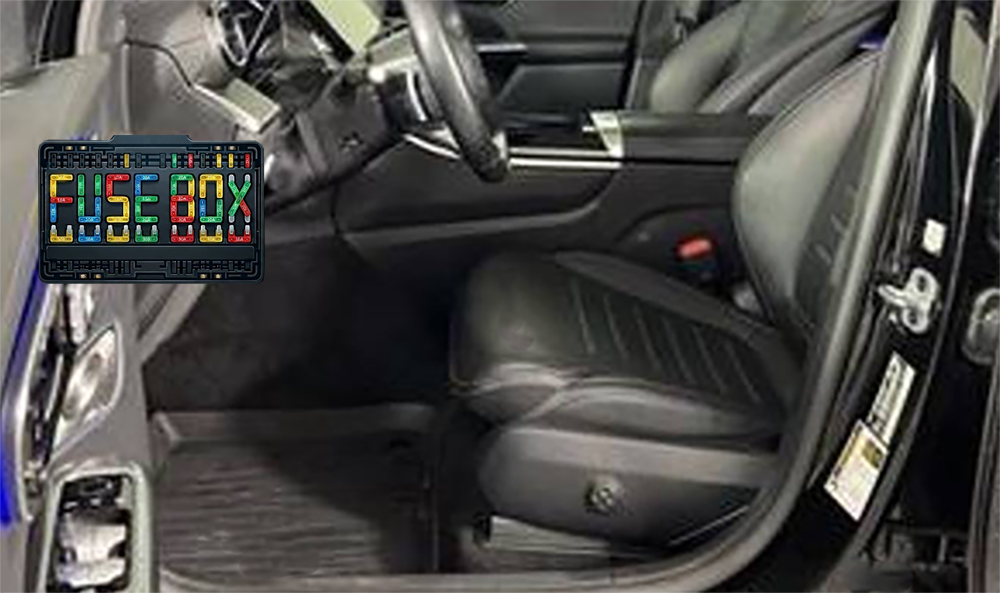

The fuse box in the passenger compartment is located on the driver's side, between the door and the instrument panel, behind the cover.

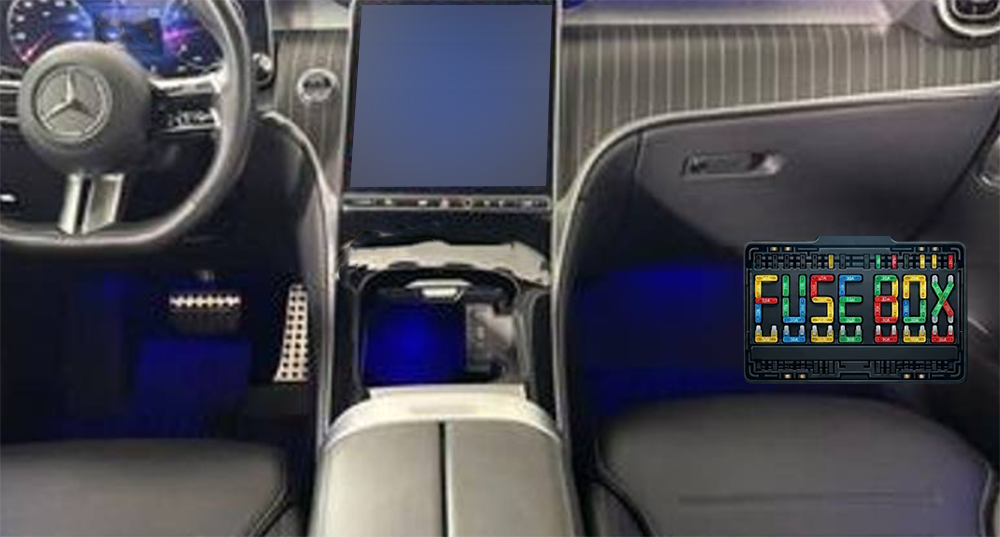

The second fuse and relay box in the passenger compartment is located on the passenger side, in the passenger footwell, on the right side.
Luggage Compartment Fuse Relay Box Location:
The fuse and relay box in the luggage compartment is located on the right side of the trunk, behind the cover.
WARNING AND NOTES REGARDING FUSE REPLACEMENT IN THE VEHICLE:
- The vehicle is secured against rolling away.
- All electrical consumers are switched off.
- The vehicle is switched off.
- Always replace faulty fuses with specified new fuses containing the correct amperage.
- Use only fuses appeoved for Mercedes-Benz with the respective fuse rating.
- When is the fuse box open, make shure that no moisture can enter the fuse box.
- When closing the fuse box, make shure that the seal of the lid is positioned correctly on the fuse box.
Additional Notes:
Model-specific systems: Due to hybridization and the new electronics, the fuse layout includes items that are characteristic of newer generations:
-
Driver assistance systems: Fuses for systems such as COLLISION PREVENT ASSIST PLUS and DISTRONIC PLUS.
-
Hybrid components: There are fuses for the service disconnect of the 48V system and hybrid components.
-
KEYLESS-GO and central locking: These systems are also covered by dedicated fuses.
Where to find the exact layout: Official Mercedes-Benz manuals for models from 2022 to 2025 consistently state that the fuse layout diagram is located on the side of the fuse box itself. This is the safest way to determine which fuse serves which function, since the layout may vary depending on equipment and engine..
