2024 - 2026 Mercedes-Benz G-Class SUV Fuse Relay Boxes Location
2024 - 2026 Mercedes-Benz G-Class SUV, has 3 fuse and relay boxes, 1 fuse relay box in the engine compartment and 2 fuse relay box in the passenger compartment.
Engine Compartment Fuse Relay Box Location:

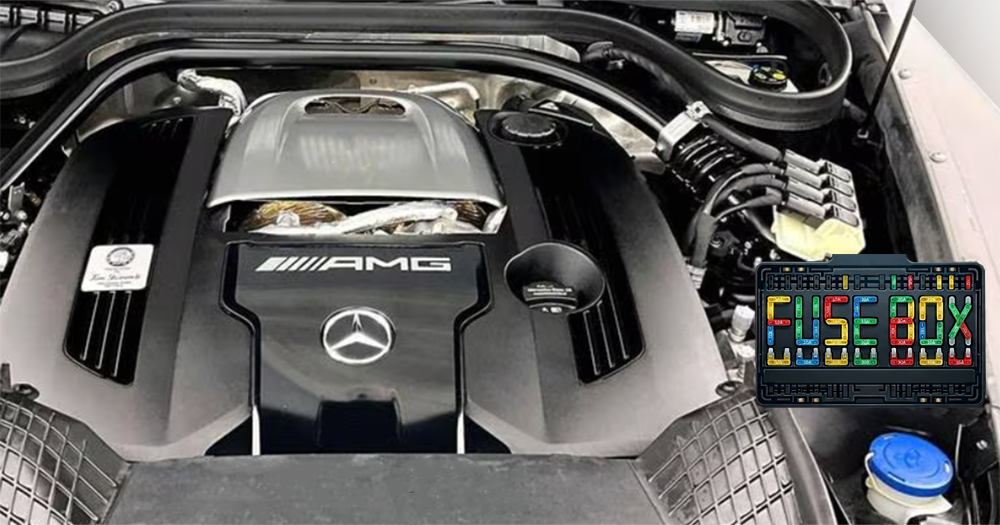

The location of the fuse relay box in the engine compartment is on the driver's side of the engine.
Passenger Compartment Fuse Relay Box Location:

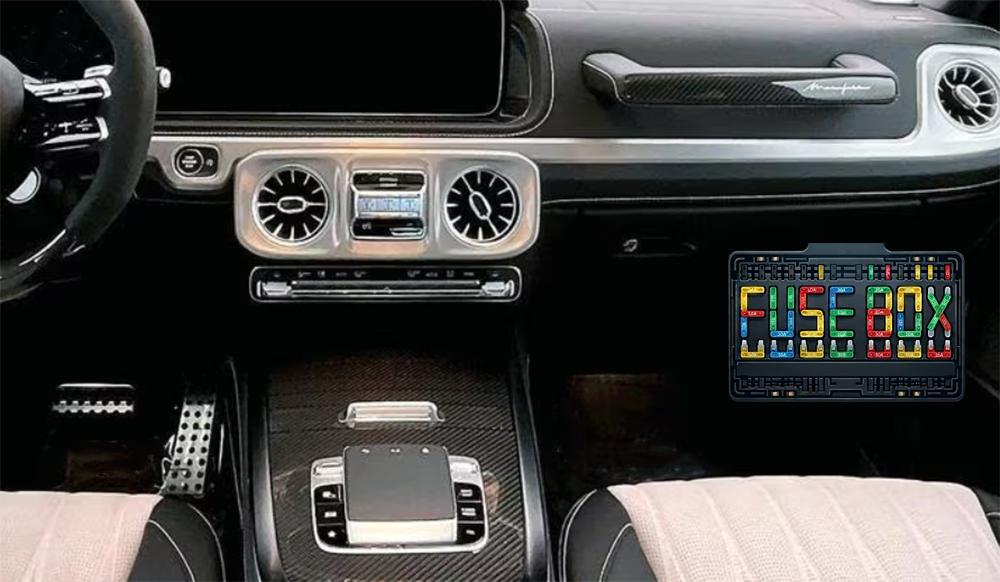

The fuse and relay box in the passenger compartment is located on the passenger side, in the front passenger footwell, on the right side, behind the cover.

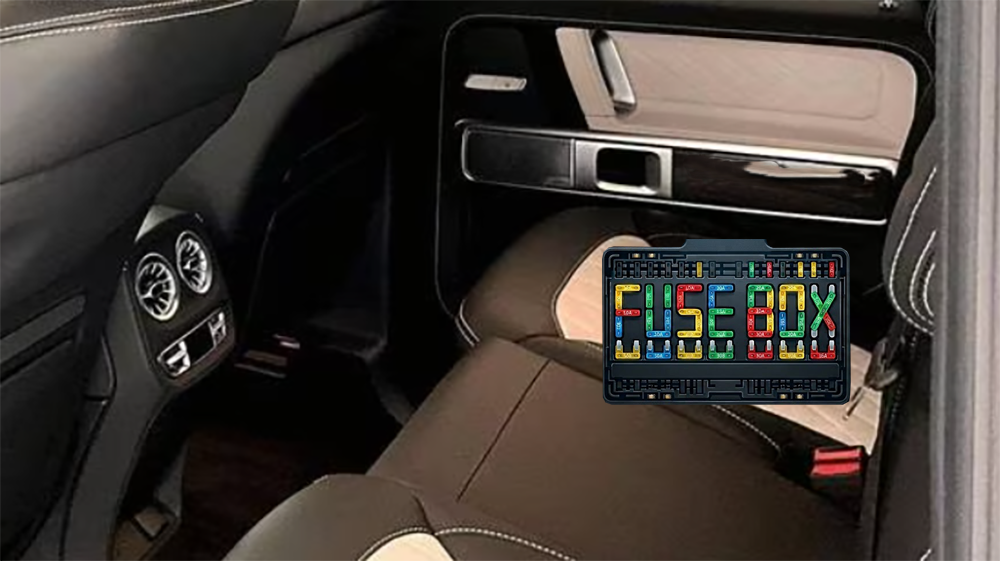

The second fuse and relay box in the passenger compartment is located on the passenger side, under rear seat.
WARNING AND NOTES REGARDING FUSE REPLACEMENT IN THE VEHICLE:
- The vehicle is secured against rolling away.
- All electrical consumers are switched off.
- The vehicle is switched off.
- Always replace faulty fuses with specified new fuses containing the correct amperage.
- Use only fuses appeoved for Mercedes-Benz with the respective fuse rating.
- When is the fuse box open, make shure that no moisture can enter the fuse box.
- When closing the fuse box, make shure that the seal of the lid is positioned correctly on the fuse box.
Additional Notes:
Differences between models: Although the fuse box locations are similar, the specific layout and fuse ratings may vary depending on the engine configuration (e.g., G 450 d, G 500, AMG G 63) or the energy type (petrol/diesel/fully electric). When replacing fuses, it is recommended that you strictly follow the diagram that corresponds to your specific vehicle.
